E3D

Revo™ Prusa Mini Edition

Regular price $248.00 SGD
Regular price Sale price $248.00 SGD
Sale Sold out
Shipping calculated at checkout.
Kit Type

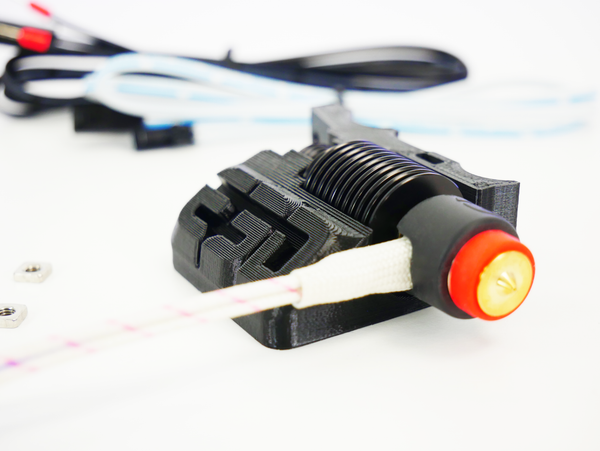

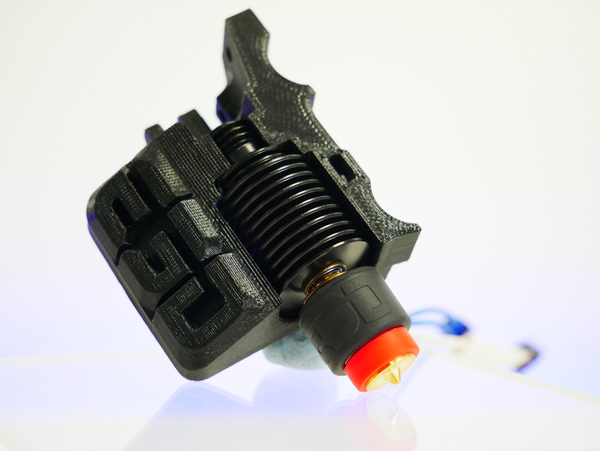

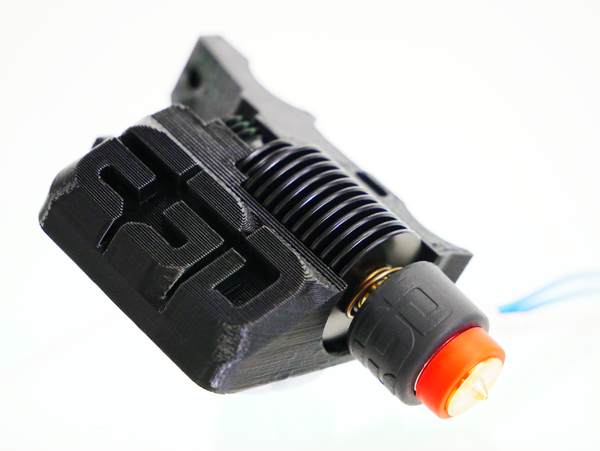

Revo™ Prusa Mini Edition is a drop-in replacement for your Prusa Mini & Mini+, giving you all the benefits of E3D’s RapidChange Revo ecosystem in an easy-to-upgrade package. The Revo™ Prusa Mini Edition includes a Prusa-specific thermistor extension cable, heater extension cable, a 3D printed bracket and everything else you need for a true drop-in replacement experience.



No machine redesign. Revo™ Prusa Mini is a top choice if you want to update your old Prusa Mini or Mini+ setup to the latest generation of E3D™ HotEnd technology. It has the same nozzle position and filament diameter. All you need to do is undo the four screws that hold the existing HotEnd and reattach the new bracket. Easy-to-follow upgrade instructions can be found here. What’s more, your pre-existing Prusa print profiles remain compatible with no changes necessary.

Ready for Revo™. Revo™ Prusa Mini is designed to work with Revo™ Nozzles, meaning you can perform nozzle swaps with your fingers at room temperature without complex tools or hot tightening. Each Revo™ Nozzle is factory sealed, making it much simpler and more reliable than most HotEnd technology available today.

Enhanced performance. Revo™ Prusa Mini uses a Revo HeaterCore, our latest HotEnd heating and sensing architecture. It reaches temperature much faster than a traditional aluminium heater block, and it’s much safer: a positive temperature coefficient (PTC) means the HeaterCore can’t melt at extreme temperatures, reducing hazards in the event of a thermal runaway.

No firmware or PID changes. Revo™ Prusa Mini was designed to be fully compatible with the stock Prusa Mini firmware – this means there’s no need to modify any firmware. Even more impressive is that it’s fully compatible with the Prusa Mini temperature monitoring model, meaning you don’t need to PID tune after the upgrade!

Please note:

  • You may need to adjust your Z offset when changing nozzles.
  • This kit does not include a fan. The stock Prusa fan should be reused.
  • This kit does not include any PTFE tube.



Key features:

- Max temp: 300C

- Weight: 30g

- Nozzle type: RapidChange Revo™

- Maximum temp: 300°C

- M12 x 1.5 thread mounting

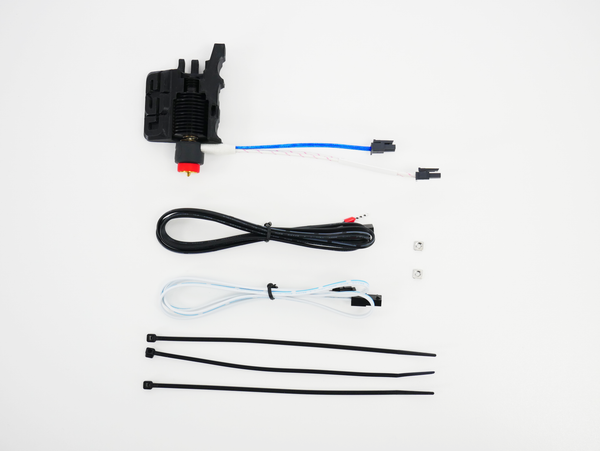

Kit includes:

Quantity
Item
1 Revo™ Micro heatsink
1 Collet
1 Collet clip
1 Revo™ HeaterCore 24V
1 Revo™ HeaterCore spring
1 Prusa Mini extension cable kit
1 Prusa Mini bracket
3 Cable tie
2 M3 square nut



Single nozzle kit:

- 1 x 0.40mm Brass Revo™ Nozzle

Fully loaded nozzle kit:

- 1 x 0.25, 0.40, 0.60, and 0.80mm Brass Revo™ Nozzles
