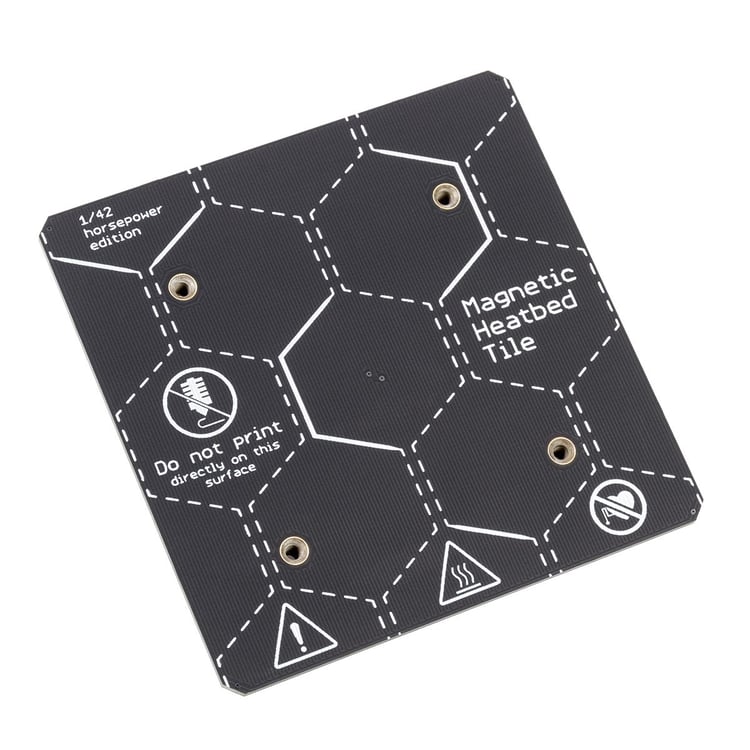

Heatbed tile

This replacement heatbed tile for the Original Prusa XL 3D printer can be used if one of the tiles on your XL heatbed gets damaged and needs to be replaced. You don’t need to replace the entire heatbed, which consists of 16 individual tiles—you can replace just the damaged one!

You don’t have to throw away the replaced heatbed tile immediately. If it’s not too damaged, you can repurpose it in another creative way. After all, it’s a heated pad that conveniently resembles in shape and size, for example, a coaster 😉.

Connector Pinout Diagram:

Dimensions: 90x90 mm
Thickness: 2mm +- 0.2mm

Nominal Voltage: 24V
Nominal Current: 1.44A
Nominal Resistance: 16Ω +- 15% at 25°C

Thermistor: NTC, 100kΩ
Maximum Operating Temperature: 125°C
