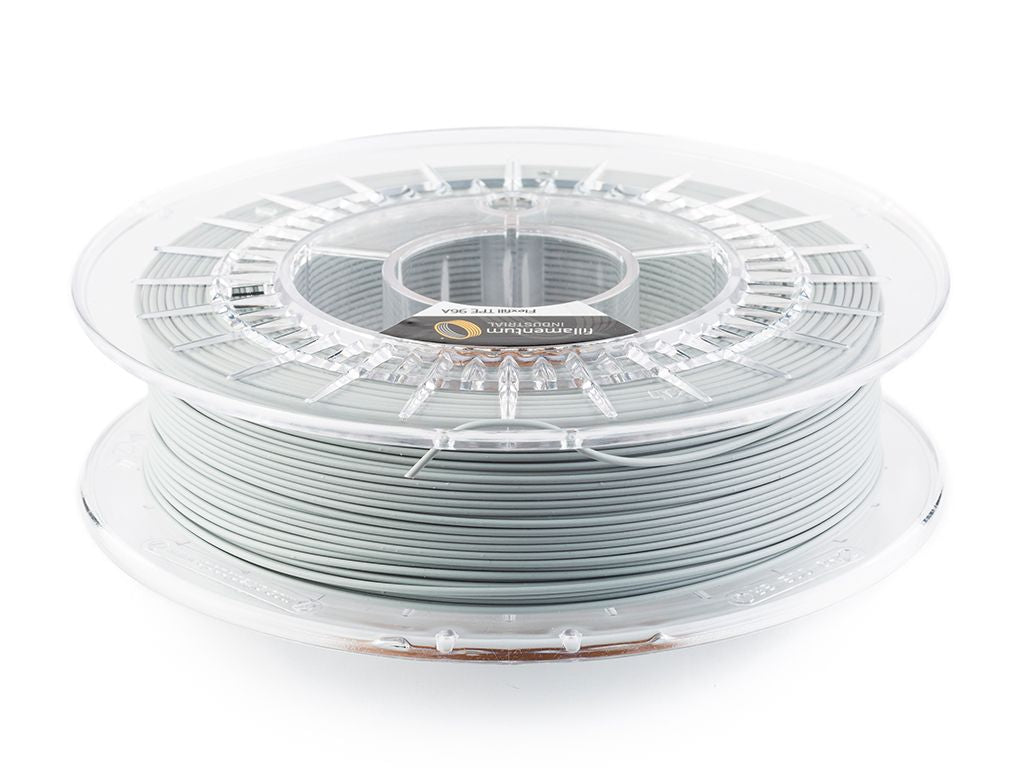

Flexfill TPE 96A 1.75mm 500g Light Grey
Flexible material based on polyolefinic thermoplastic elastomer with hardness 90 Shore A. This filament is safe for food-contact applications and for applications in contact with skin.
Wear resistance guarantees the durability of 3D printed products. Great for sealings especially in the presence of certain substances, the ability to seal is preserved also at higher temperatures. This material has very low gas permeability.
Features:
- Safe for food-contact and skin-contact applications
- Dimensional stability
- Smooth matte finish
- Pleasant to touch
- Tear strength, abrasion resistance
- Chemical resistance against acids, alcohols, alkalis, and water
- Resistant against dirt, washable
- Recyclable
- BPA-free
- Low odor
- Safe to use in electrical and electronic equipment
Working temperature: | 225–245 °C |
Heated bed: | 50–60 °C |
Diameter: | 1.75 mm |
Diameter tolerance: | +/- 0.10 mm |
Weight: |
500 g of filament (+ 230 g spool)
|
The length of the filament: |
170 m (1.75 mm, 500 g)
|
RAL | Pantone | HEX: |
N/A | N/A | N/A
|
Comparison of our Flexfill family:
Flexfill TPU | Flexfill TPE | Flexfill PEBA | ||
Polymer base | Polyurethane + ester | Polyolefin + SEBS | Polyamide + ether | |
Tensile strength | 49 MPa | 5 MPa | 36 MPa | |
Elongation at break | 600 % | 250 % | > 1000 % | |
Density | 1.20 g/cm3 | 1.15 g/cm3 | 1.00 g/cm3 | |
Sensitivity to moisture | High | Low | High | |
Chemical resistance | Oils, greases, ozone | Water, acids, alcohols, alkalis | Car fluids, toluene, acetone, ozone | |
Food & skin contact | Not recommended | Certificated | Not certificated | |
Gas permeability | High | Low | Medium | |
Optical properties | Glossy, transparent | Matte, non-translucent | Glossy, very transparent | |
For example, ideal for applications | Vibration | Anti-vibration, damping | Anti-vibration, damping | Vibration and energy transfer |
Skin contact | - | Long-term touch of human skin (holding in hands) | - | |
Under temperature | +80–100 °C | +80 °C | -40 °C | |
In contact with | Oils | Water | Car fluids | |
Abrasion | Sliding abrasion | - |
Impingement abrasion |
|
Other | - | Outdoor | Low density | |
- | - | Rebounding |
The input material was carefully selected to achieve the best processability and final properties. Fillamentum’s products are always produced from the precisely specified type of material, with the highest stability across all the batches. The customers can rely on the best quality at any time they use our filament.
