Fillamentum INDUSTRIAL

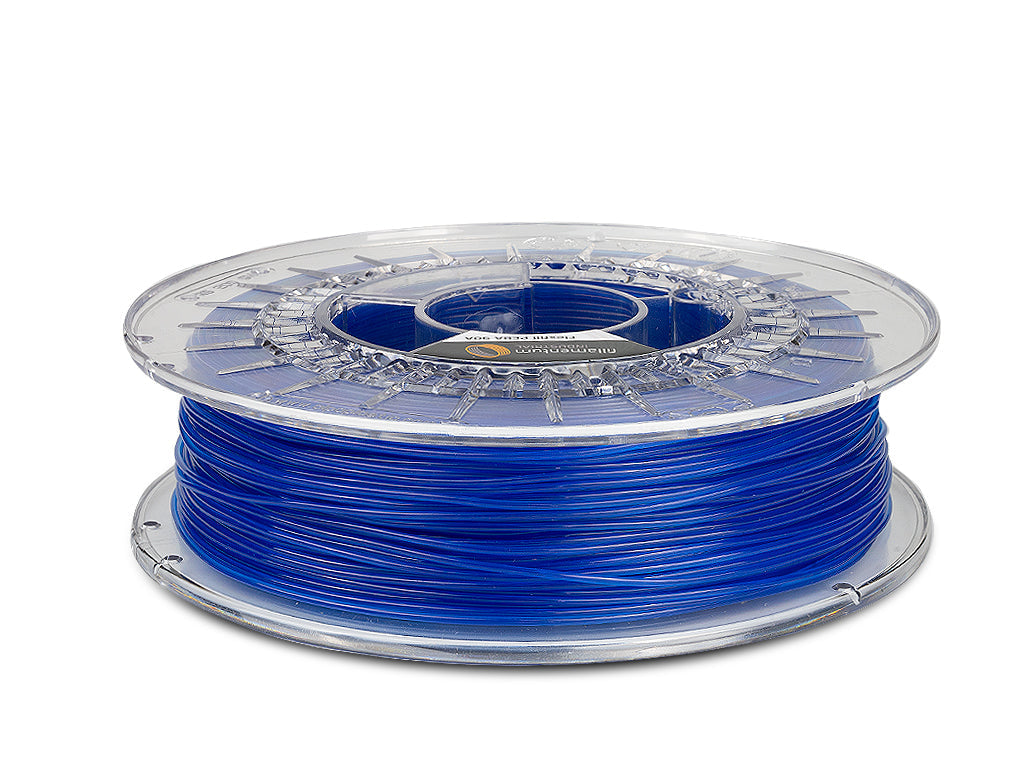

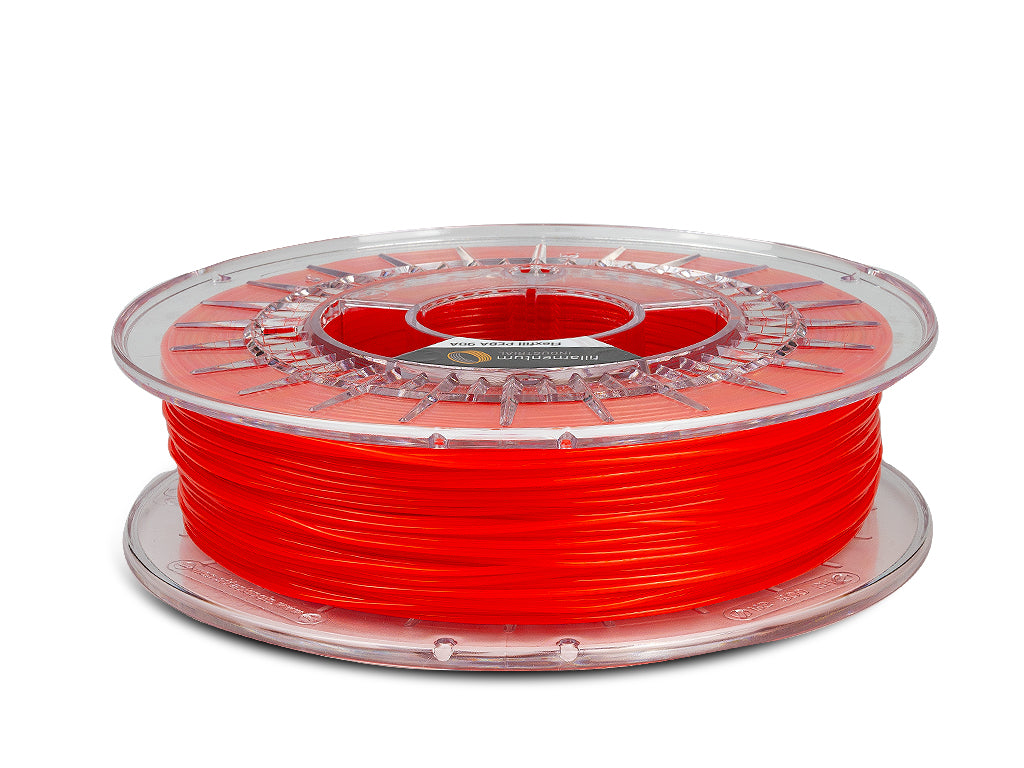

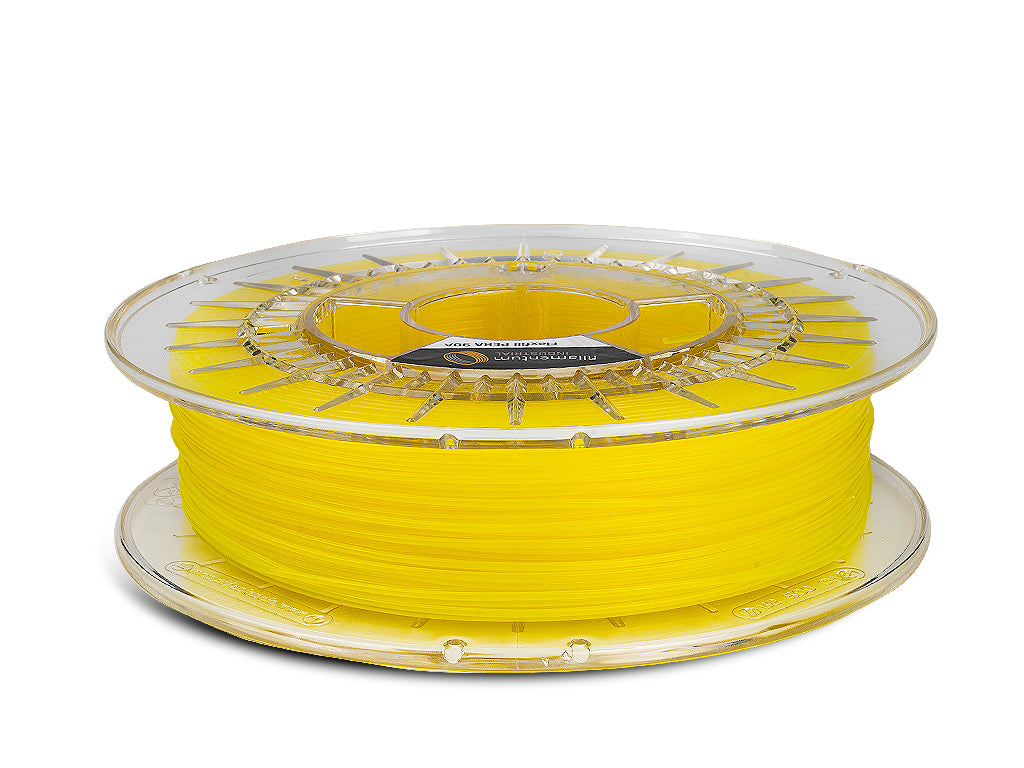

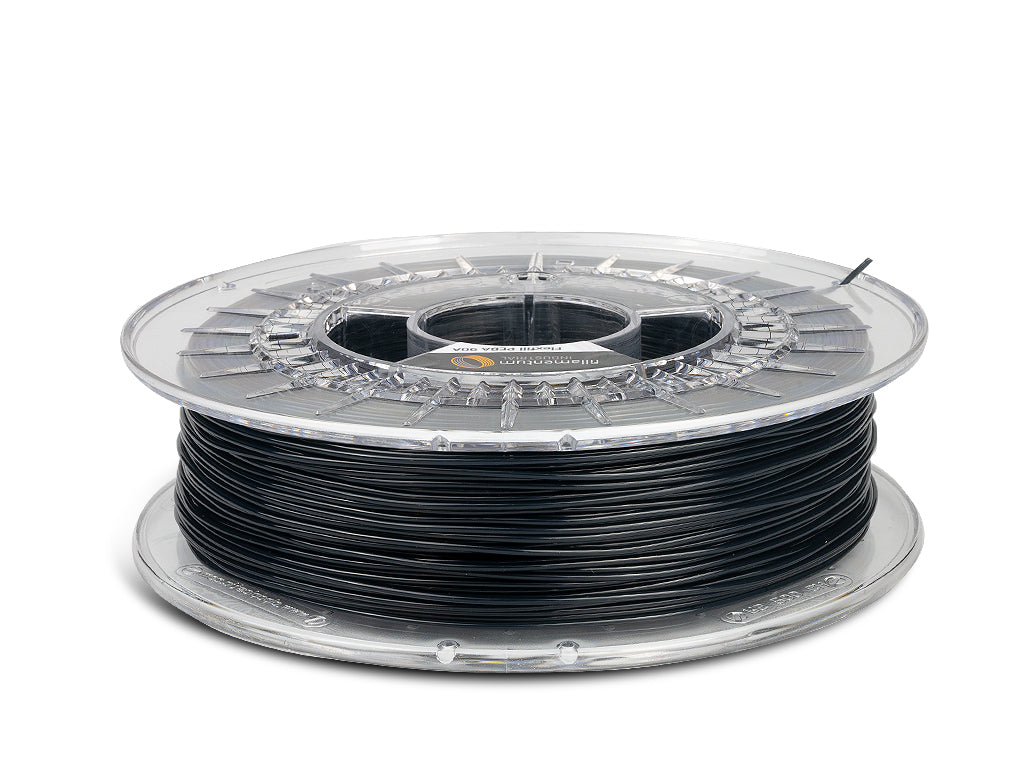

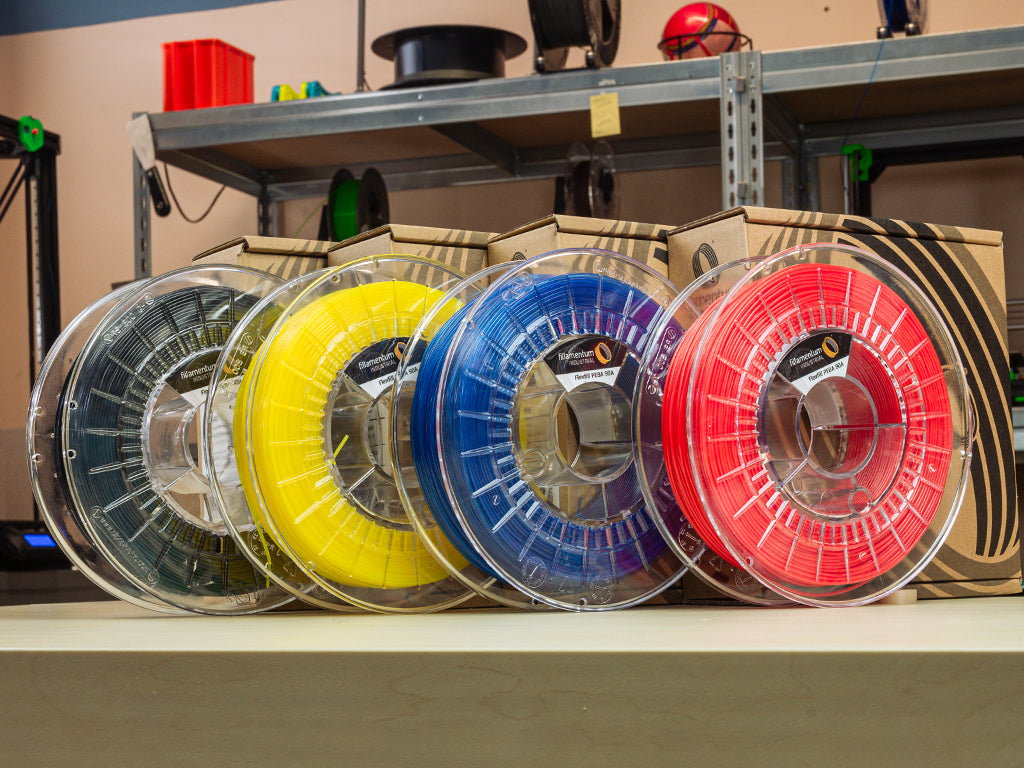

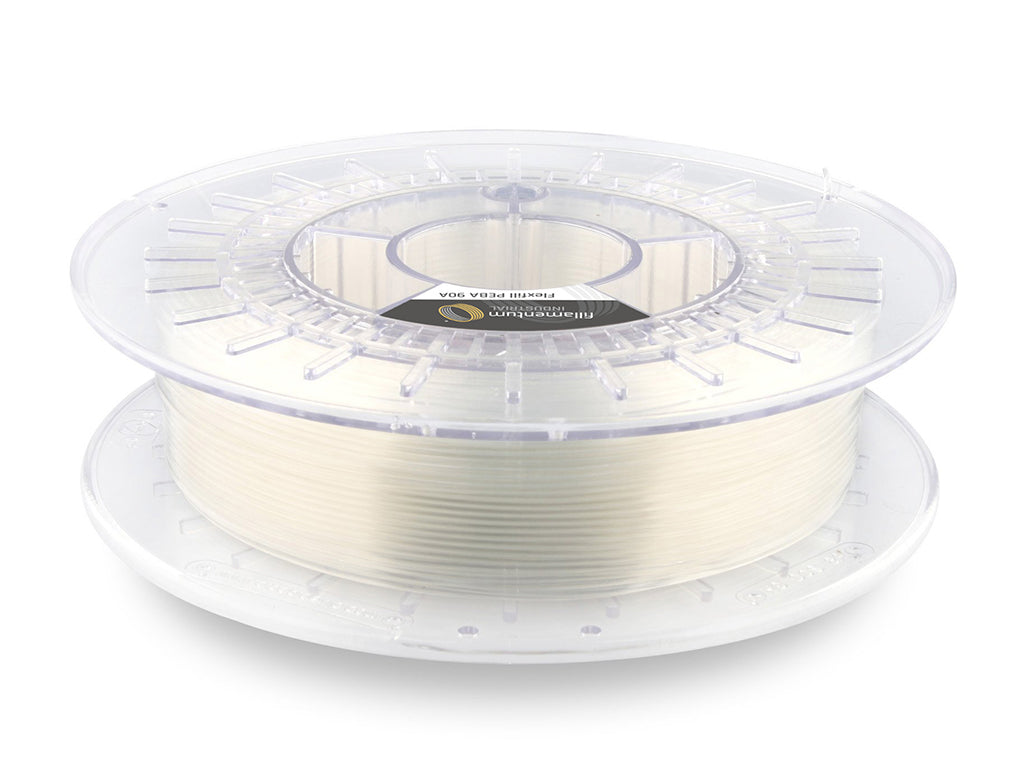

Flexfill PEBA 90A
Regular price
$125.00 SGD
Regular price
Sale price
$125.00 SGD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
This type of Flexfill is based on polyether-block-amide (PEBA), which was specially developed for processing by 3D printing. Although it is flexible with hardness 90 Shore A, it exhibits different thermal, mechanical, and chemical behavior from other Flexfill filaments (TPU, TPE)!
Features:
- Excellent mechanical properties
- Flexible even at low temperatures
- High reversible deformation
- Rebound resilience preserved also at low temperature (down to -60 °C)
- Great chemical resistance, for mention against car fluids (gasoline, diesel, oil, ...)
- Resistant to cyclic loading without obvious damage
- High energy return, low hysteresis
- Tear resistance
- The lowest density from flexible filaments
- Recyclable, BPA free
- Low fumes released
- Safe for food contact applications (declaration sent per request)
- Safe to use in electrical and electronic equipment
| Working temperature: | 225–245 °C |
| Heated bed: | 70–90 °C |
| Diameter: | 1.75 mm, 2.85mm |
| Diameter tolerance: | +/- 0.10 mm |
| Weight: |
500 g of filament (+ 230 g spool)
|
| The length of the filament: |
210 m (1.75 mm, 500 g)
80 m (2.85 mm, 500 g)
|
| RAL | Pantone | HEX: |
N/A | N/A | N/A
|
Comparison of our Flexfill family:
| Flexfill TPU | Flexfill TPE | Flexfill PEBA | ||
| Polymer base | Polyurethane + ester | Polyolefin + SEBS | Polyamide + ether | |
| Tensile strength | 49 MPa | 5 MPa | 36 MPa | |
| Elongation at break | 600 % | 250 % | > 1000 % | |
| Density | 1.20 g/cm3 | 1.15 g/cm3 | 1.00 g/cm3 | |
| Sensitivity to moisture | High | Low | High | |
| Chemical resistance | Oils, greases, ozone | Water, acids, alcohols, alkalis | Car fluids, toluene, acetone, ozone | |
| Food & skin contact | Not recommended | Certificated | Not certificated | |
| Gas permeability | High | Low | Medium | |
| Optical properties | Glossy, transparent | Matte, non-translucent | Glossy, very transparent | |
| For example, ideal for applications | Vibration | Anti-vibration, damping | Anti-vibration, damping | Vibration and energy transfer |
| Skin contact | - | Long-term touch of human skin (holding in hands) | - | |
| Under temperature | +80–100 °C | +80 °C | -40 °C | |
| In contact with | Oils | Water | Car fluids | |
| Abrasion | Sliding abrasion | - |
Impingement abrasion |
|
| Other | - | Outdoor | Low density | |
| - | - | Rebounding |
