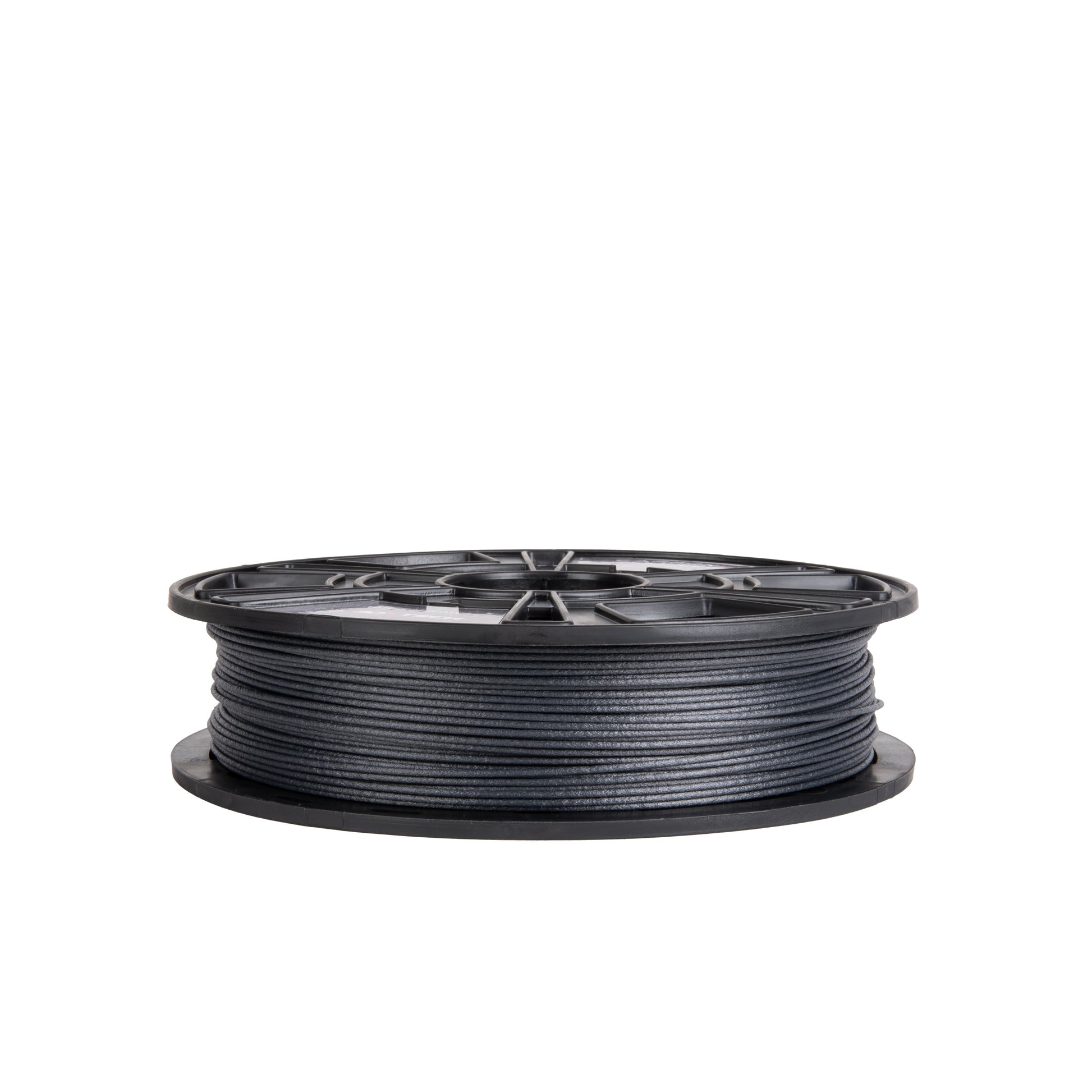

3DXTech CarbonX PEEK+CF10 Black 500g

This product can only be printed with a high-temperature printer such as the Prusa Pro HT90. If in doubt, ask us prior to ordering.

CarbonX™ PEEK+CF10 Carbon Fiber reinforced PEEK 3D Printing Filament is one of the highest performance polymers in the plastics world. This material has outstanding mechanical, thermal, and chemical resistance properties – making it ideal for some of the most demanding applications in any industry.

Basic Attributes

• Superior mechanical properties, even at elevated temperatures
• Excellent chemical resistance
• Low Coefficient of Linear Thermal Expansion (CTE)
• Near Zero moisture absorption
• Low smoke and toxic gas emissions
• Heat Deflection Temperature (HDT) of 320°C
• Glass Transition Temperature (Tg) of 143°C
• Melt Temperature (Tm) of 343°C
• PEEK has an incredible resistance to hydrolysis in boiling water and superheated steam (useful for sterilization and autoclaving) at temperatures in excess of 250°C

Printing Setup

• Extruder: 380-410°C
• Bed Temp: 130-150°C
• Nozzle: We currently recommend a hardened nozzle with a minimum diameter of 0.4mm.
• Other: Ideal layer height is 60% of nozzle diameter. We do not recommend printing layers smaller than 0.2mm with carbon fiber reinforced filaments.
• Heated Chamber: Recommended
• Drying Instructions: 120°C for 4 hours.
